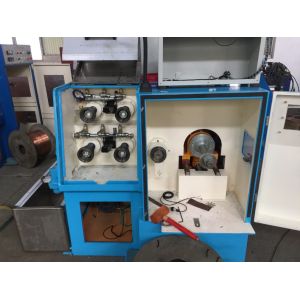

HXE-24VX Super fine copper wire drawing machine
I. Application
Super fine copper wire drawing machine is used to drawing copper wire from 0.14mm-0.4mm to 0.025mm-0.08mm.
II. Main technical parameter
1. Inlet wire diameter: 0.15mm-0.4mm
2. Outlet wire diameter: 0.03mm-0.08mm
3. Speed: 1800mpm, for 0.05mm, speed 1500m/min, capacity 1.563kg per hour.
4. Dies number: 24
5. Slip ratio of machine: 1st -23rd 10.5%, 24th 6%
6. Wire drawing mode:standing-mode and 4 axes
7. Driver: by dual inverters control, Brand: Inovance, Chinese famous brand, made in Shenzhen.
8. Main motor: 5.5KW AC 3 phase motor
9. Spooler motor: 2.2KW AC 3 phase motor
10. Motor brand: Wan Nan motor, China classical brand
11. Capstan: steel with ceramic plasma
12. Max capstan diameter: 120mm
13. Max fix speed capstan: 120mm
14. Machine structure: cast iron
15. Transmission: by Flat belts
16. Tension control: weight balance by swing arm
17. Spool size: 250mm
18. Take up: shaft type
19. Receiving weight: 30kg/max
20. Brake: magnetic brake
21. Drawing Lubrication: pipe spray
22. Power source: (customized)
23. Machine dimension: 1900L*1350W*1750H
24. Machine weight: 1900KG
III. Components
| Name | Quantity |
| 1. Pay-off stand | 1 set |
| 2. HXE-24VX Drawing machine | 1 set |
| 3. Lubrication system | 1 set |
| 4. Spare parts | |
IV. Machine maintenance and precautions
1. Make sure the machine and the capstans clean, no scrap, no break wire.
2. Make sure the Take-up part clean.
3. Electrical cabinet should be closed.
4. Change belts if worn out.
5. Only qualified electrical technician can repair the electrical part.
6. Never change the Inverter parameter.
7. If something wrong with the machine that can`t solve, please contact the supplier first.
Do not open the machine without talking to the supplier.
V. Common trouble solve method
1. After shut down the machine, need at least 30 seconds to restart the machine.
2. Wire often breaks, adjust the speed, balance arm, check the dies are clean or not.
Before open the machine, make the balance arm at the lowest position, and in running, the balance arm should be in the horizontal line. No big shake, no up and down frequently.
3. If the wire sticks to the capstan, use Alcohol to clean the capstans.
4. Pay-off shelf doesn`t work well, change the position of the pay-off.
5. Has nick on the wire, check the capstans on the Take-up part.
Check the drawing capstans.
VI. After sale service
6-1. Warranty: after shipping, machine part one year, electrical parts six months
6-2. Under these situation mentioned, the Seller will not take responsibility, but if the Buyer agree, will charge fees accordingly to repair the machine.
A. Due to wrong operation while shipping.
B. Due to Buyer`s wrong preparation that may cause damage to the machine.
C. Due to Buyer`s wrong operation that may cause damage to the machine.
D. Not in the consuming part list.
E. After agreement are made for the shipping, for any damage, Buyer should inform Seller in letter form to repair in seven days, If beyond the dare, Seller shall take no responsibility.
F. For any other failures due to acts of God (such as lightning, typhoon, earthquake, riots, war, fire or flood) and other factors that will cause damage, Seller shall take no responsibility.
G. Seller guarantee provide long term support regarding the parts and teach. After warranty, will charge accordingly.
